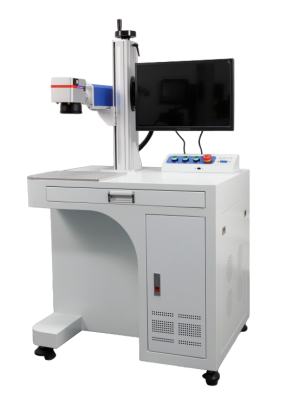

Cabinet Type Fiber Laser Marker
| Cabinet Type Fiber Laser Marker |
| Focusing method | Manual focusing (optional double red light) | Machine weight | 65 kg |
| Lifting method | Manual lifting (optional Electric lifting) | Package size | 750*900*1150 mm |
| Machine size | 600*800*1340 mm | Package weight | 105 kg |
| Standard configuration |
| Laser | Anacotte | Laser power | 20W(Optional 30W/50W/100W etc.) |
| Galvanometer | SINO-GALVO | Marking speed | ≤7000 mm/s |
| Field lens | JZGOE | Marking range | 110*110 mm(Optional other ranges) |
| Control card | JCZ | Marking software | EzCad 2 |
| Computer | Included | Optional fittings | CCD vision、3D Galvanometer etc. |
| Parameters |
| Min mark line width | 0.06mm@F=160mm | Mincharacter height | 0.2mm@F=160mm |
| Repeat frequency | 30-60KHZ | Pulse width | 150ns |
| Repeat accuracy | ≤0.01mm | Marking depth | ≤0.2 mm |
| Computer System | Windows 7/10/11 | Cool mode | Air cooling |
| Prower range | 10~100 % | Power consumption | ≤0.55kw ·h |
| Power Supply | MEAN WELL | Supply electricity |
110V-220V 50HZ-60HZ |
Spacious. Stable. Built for Industry.
The Cabinet Type Fiber Laser Marker is a high-performance marking solution designed for precision, durability, and large-scale production. With its enclosed structure and extensible workbench, it offers a stable and spacious workspace — ideal for processing oversized items, handling mass marking tasks, and integrating into factory workflows.
Powered by advanced 1064nm fiber laser technology, it produces sharp, high-resolution, and permanent markings on a wide variety of materials — including metals, plastics, ceramics, coated surfaces, and more.
Engineered for demanding environments, this machine delivers exceptional beam quality, high energy efficiency, and a long service life with minimal maintenance. Whether you're marking automotive components, electronic parts, or industrial tools, the Cabinet model ensures consistent, clean results — shift after shift.
Reliable, configurable, and production-ready, the Cabinet Type Fiber Laser Marker is built to meet the rigorous needs of modern manufacturing.
